Smart Capacitance Fuel Tank Level Sensor For GPS Tracking

Name: Smart Capacitance Fuel Tank Level Sensor For GPS Tracking
Brand: Sier
Price: 40 USD

Brand Name : Sier

Model Number : SPT61

Certification : CE,RoHS

Place of Origin : China

MOQ : 1

Price : USD40~80/Piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 pieces each month

Delivery Time : 7

Packaging Details : Carton

Power Supply : 11-33VDC or 12VDC

Max Level Range : 1800mm(100 ....... 1800mm optional)

Application : GPS or GPRS fuel tank level monitor

Product name : Capacitance Level Sensor

Accuracy : ≤ ±0.5%F.S

Protection level : IP65(connection);IP68(Sensor)

Contact Now

Fuel Tank Level Sensor For GPS Tracking

Smart Capacitance Fuel Tank Level Sensor For GPS Tracking

SPT61 smart capacitance Fuel Tank Level Sensor are designed for liquid level measurements where the levels are lower than 3 meter, 304/316 stainless steel allows the transmitters to be suitable for harsh environments and various measuring medium, such as oil, fuels, or other media compatible with 316 stainless steel.The user can realize the ZERO or range self-calibration with two buttons or two lead lines to meet different requirements on various complex occasions.

Feature	Advantage	Benefit
The thread can be fiited with flange at the top of the sensor	For large vehicles, there is a standard size integrated structure, no need to change the oil and circuit interface, directly replace the installation	Easy installation and maintance
Analog signal supports local two - wire touching calibration Digital signal RS485 supports automatic computer calibration	For the calibration of differe nt media, only two key "zero" and "full Span" can be easily achieved	Easy operation and suitable for many kinds of liquid measurement
Customs high temperation with cooling device	allowing media temperatures of up to 300°C.	special for high temperation application
It can be used with GSM/GPRS/GPS module	Remote vehicles monitoring	Reduce fuel consumption operation costs prevent oil theft
With different kinds of oil	Diesel, gasoline vehicles are available	strong universality

Product Tags:

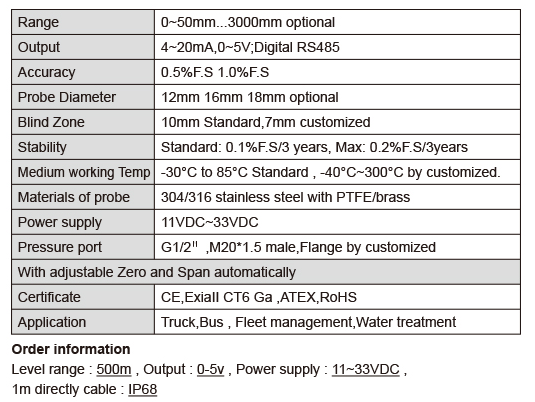

Smart Capacitance Fuel Tank Level Sensor For GPS Tracking Images
